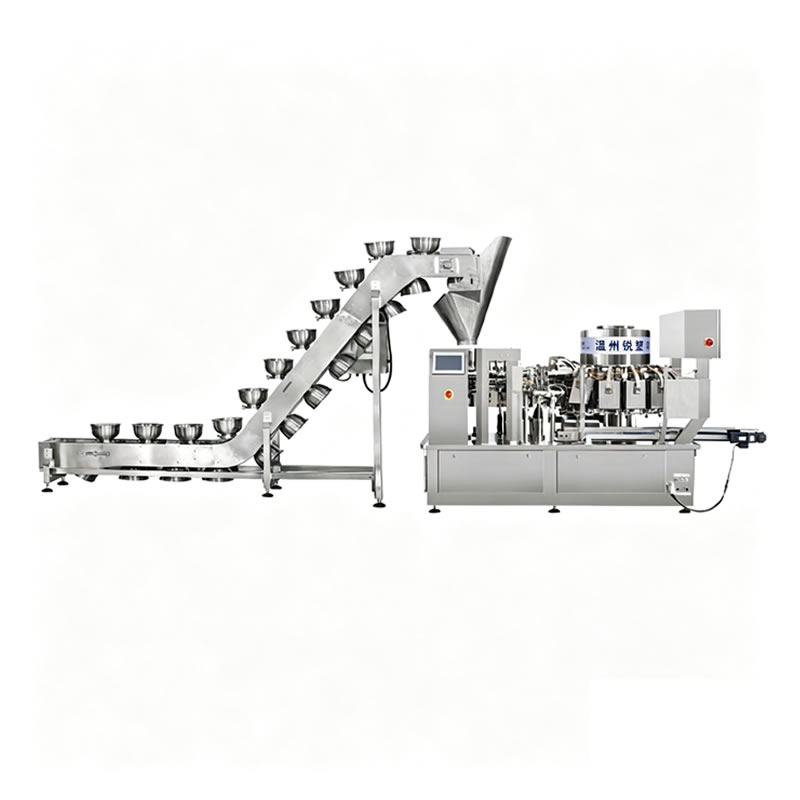

Automatic Vacuum Food Packaging Production Line is suitable for products that are mainly composed of multiple materials or cannot be automatically measured, such as material packages, cooked food products, healthy vegetables, beef packages and other products, to achieve manual measurement and automatic unloading. In the case of workshop height restrictions, it is usually used in combination with an electronic combination scale as a transition link to reduce the overall height of the equipment.

Mechanical drive
CAM lifetime warranty
Bag width automatic adjustment
Gas plate lifetime warranty
Automatic lubrication system
Aviation aluminum carving and milling vacuum chamber

Products such as premade dishes, self-heating pot packages, sauerkraut,noodle, healthy vegetables, Buddha Jumping Over the Wall, beef buns, etc. are mainly composed of a variety of materials or products that cannot be automatically measured, and manual measurement and automatic cutting are realized. Usually, it is also used with electronic combination scales as a transition link to reduce the total height of the equipment when the workshop height is limited.

Product Description
1. The appearance design is reasonable, beautiful, efficient, energy-saving and environmentally friendly. The packaging speed depends on the product. Its core power cam is made of materials imported from Japan. After 21 processing steps, the surface layer is wear-resistant and elastic. The cam is easy to maintain and clean, has a service life of up to fifty years, and comes with a lifetime warranty.
2. All parts of the equipment comply with relevant national standards and are mainly equipped with imported electrical components. All parts that come into contact with food or packaging are made of food-grade 304 stainless steel or 316 stainless steel, as well as other materials that meet food hygiene requirements. Ensure food hygiene and safety.
3. The equipment is easy to operate and adopts advanced PLC and POD electrical control systems and mechanical transmission systems to realize automatic bag taking, manual feeding, automatic loading, automatic vacuuming, automatic sealing, and automatic unloading.
4. The vacuum air-holding device of the equipment is made of synthetic materials jointly developed by our company and Germany, which can achieve zero friction and zero wear during the vacuum packaging process, and provides a lifetime warranty.
5. The equipment has its own lubrication system with a built-in lubricating oil tank. The system can recover and filter excess oil to achieve recycling and extend the service life of the equipment.

The main function
●PLC control system  ●Blanking detection     ●Output system
●Automatic alarm      ●Bag mouth cleaning   ●Bag loading device
●Vacuum system        ●Bag opening device   ● Heat sealing control
● Bag opening detection  ●Temperature monitoring   ●Unloading device   ●Water cooling device

Main Technical Parameters

Model number	YD1012-1627	YD1010-1627	YD0810-1927	YD0810-2331	YD0810-2837
Packing bag material	Aluminum foil, four-sided sealing flat bags, vertical bags, zipper bags, paper bags and other composite bags
Packing bag specification	W：80-160mm L：80-270mm	W：80-160mm L：80-270mm	W：90-190mm L：160-270mm	W：120-230mm L：160-310mm	W：160-280mm L：160-370mm
Packing speed	55-70bags	45-60bags	45-60bags	35-50bags	18-40bags
Driving mode	Mechanical transmission (CAM gear bar full mechanical mode)
Main engine weight	2.6T	2.3T	2.6T	3T	3.2T
Air consumption	≥0.8m³/min	≥0.8m³/min	≥0.8m³/min	≥0.8m³/min	≥0.8m³/min
Power	≈9KW		≈10KW	≈12KW	≈13KW
Driving power supply	380V three-phase five wire 50HZ
